The Hygienic Design device group allows you to select the appropriate hydraulic cylinder for the very humid working environment in which the device will be used. You can choose from two main types of hydraulic cylinders.
Hygienic Design Stainless Steel
Lifting Tables
To improve physical hygiene efficiency by over 50%, reduce operating costs by 30% in terms of detergent, water and time, reduce the risk of contamination in the production environment and improve overall hygiene on your production line…
choose the unique Translyft Hygiene Design stainless steel lift models!
Within the Hygienic Design lifting table range, the platform, base frame and scissors are made of AISI 304/1.4301 stainless steel. Shafts, wheels and bolts also AISI 303/1.4305. The surface is glass blasted finish. Fittings and tubes in stainless steel. Standard platform without cleaning slots. Available with cleaning slots. Special hygienic safety trip bar made of stainless AISI 304/1.4301. Return pipe(s) from cylinder(s) to tank. The power unit is separate from the table and covered by a stainless plate. Special hygienic wash down system. * Patent Pending

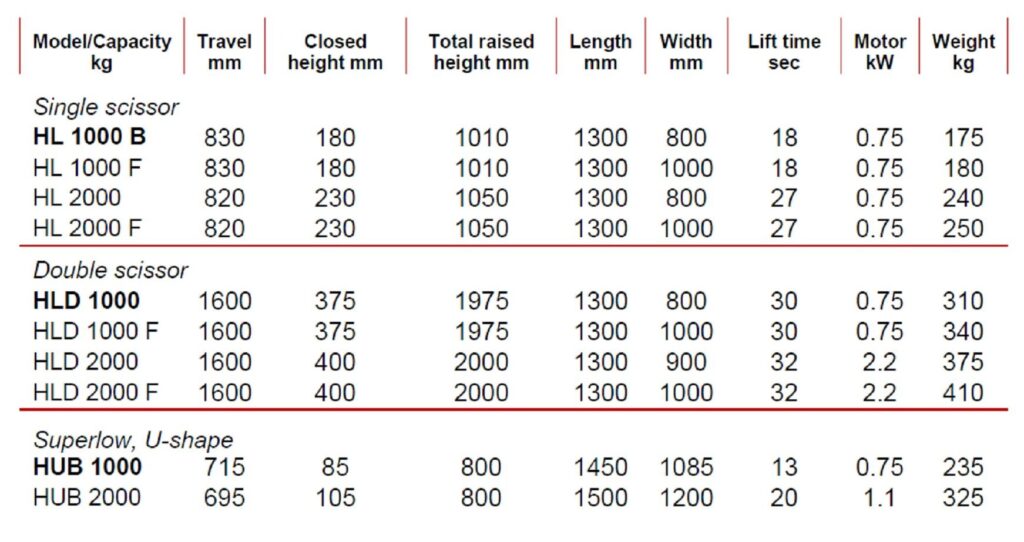

Each lift table manufactured to hygienic standards is unique and made to order, but below we have listed some of the standard models that were most popular in previous years.

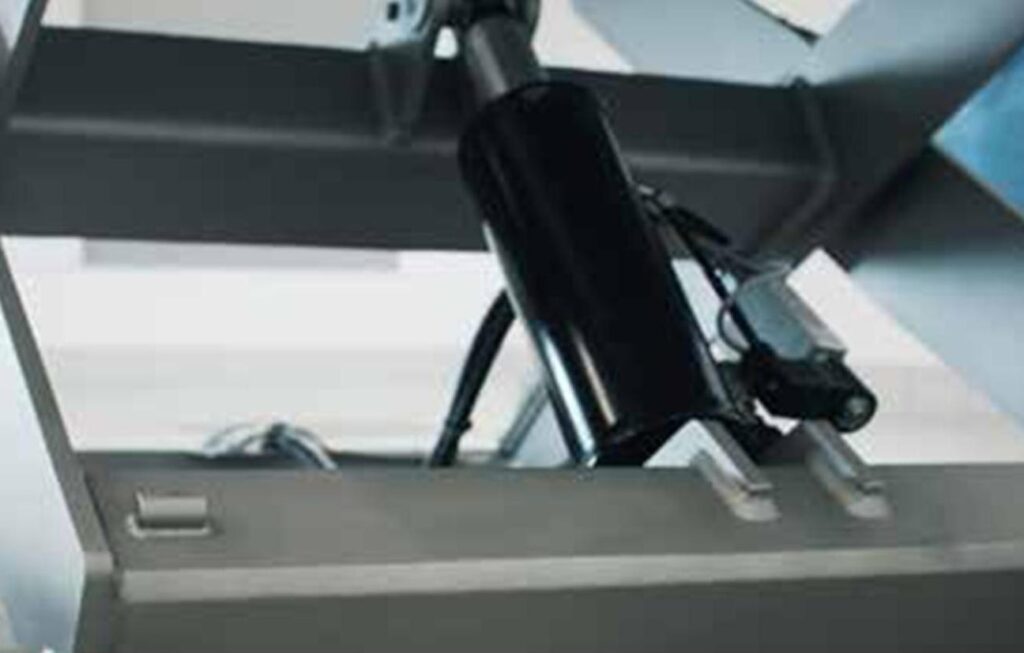

With special coating. Piston rod and joint bed are in stainless steel. Piston tube sandblasted, primed and painted twice with 2-component polyurethane paint, including stainless steel fitting AISI 316/1.4401
Special featuresto improve hygiene

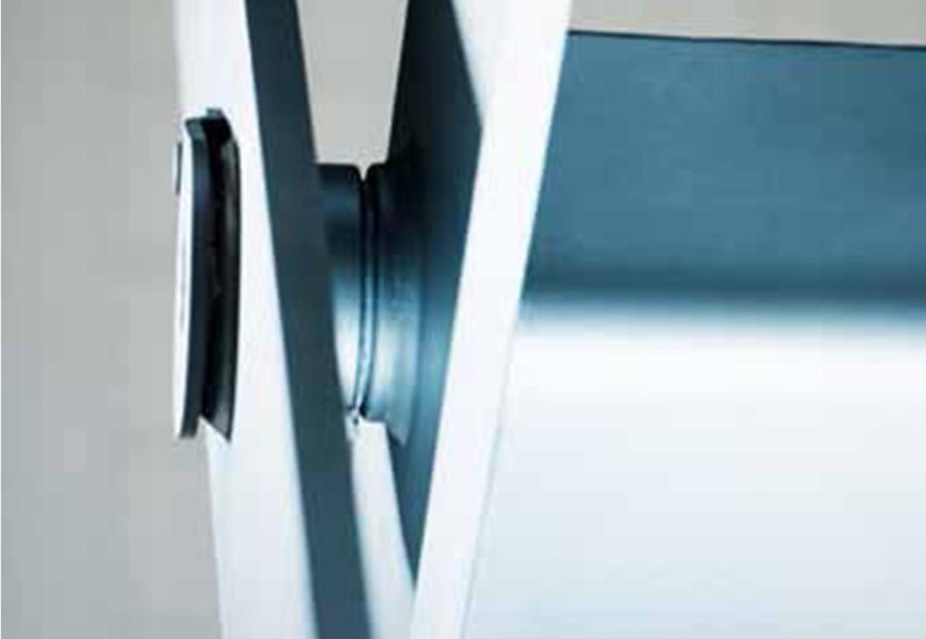

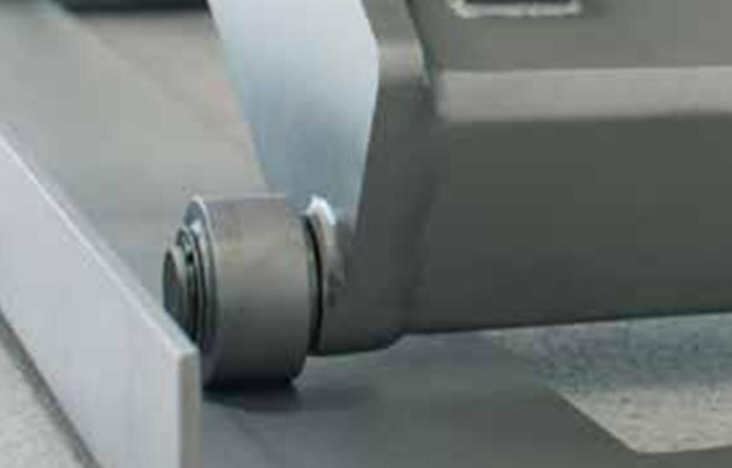

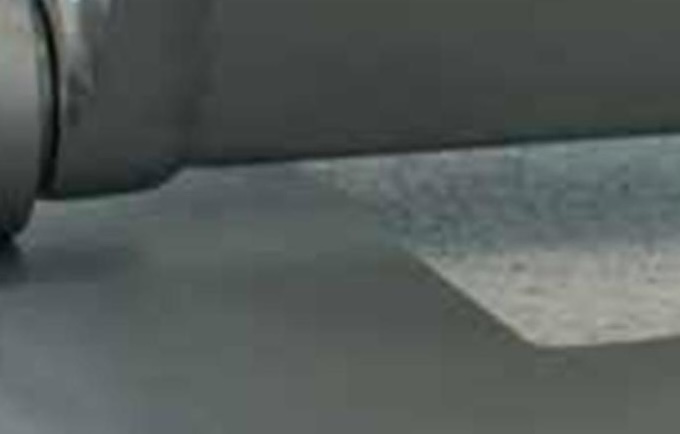

The bearings at turning points are specially developed to match the overall cleanability of the table.
The base of the table is a part of the hygienic solution as well. It can be made to match your specific need. It could be open or fully integrated.

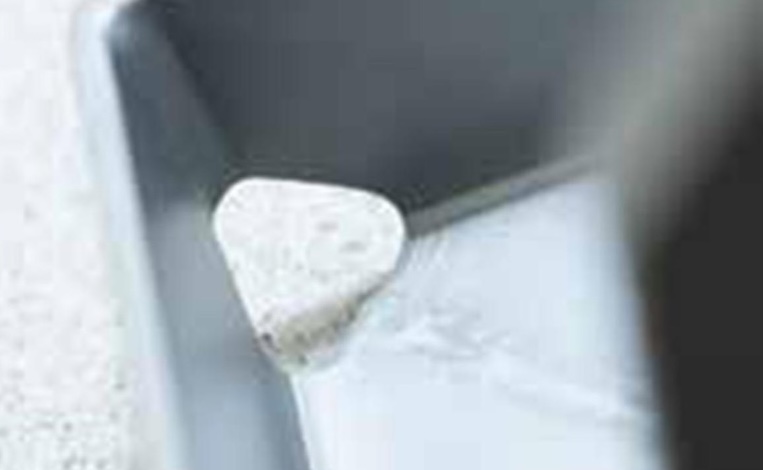

The base frame has drain holes and there are no hidden or blind edges. This makes it easy to remove water, cleaning foam and bacteria.
The scissors are produced in flat stainless steel and are therefore easy to clean.

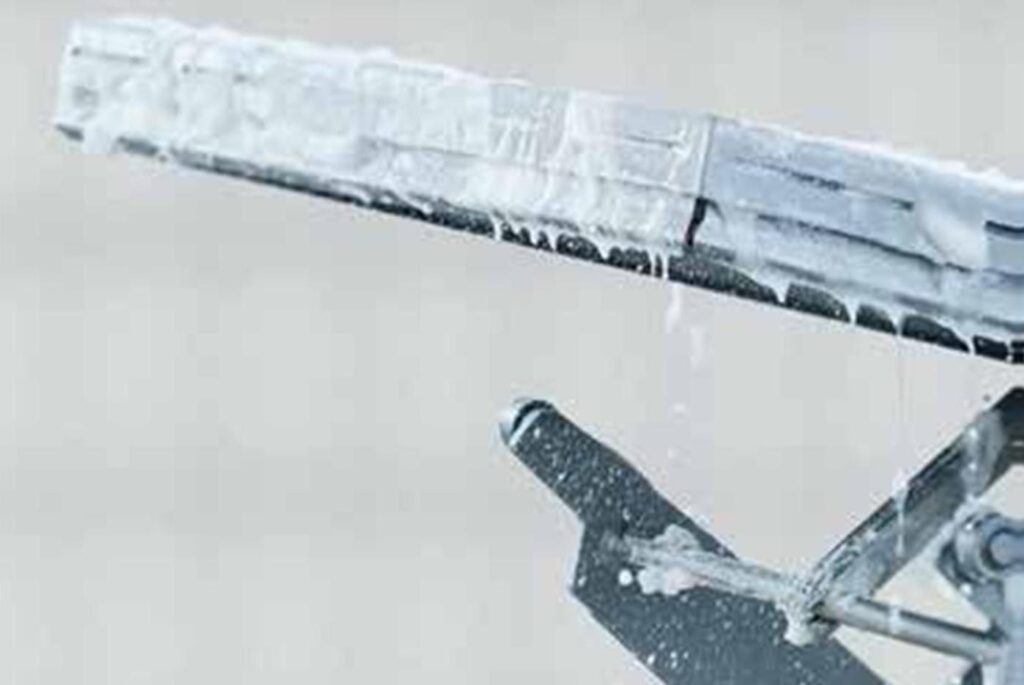

The tilt function makes the cleaning of the table more ergonomic and effective.
Cleanable stainless steel safety trip bar and it is manufactured with cleanability in mind.

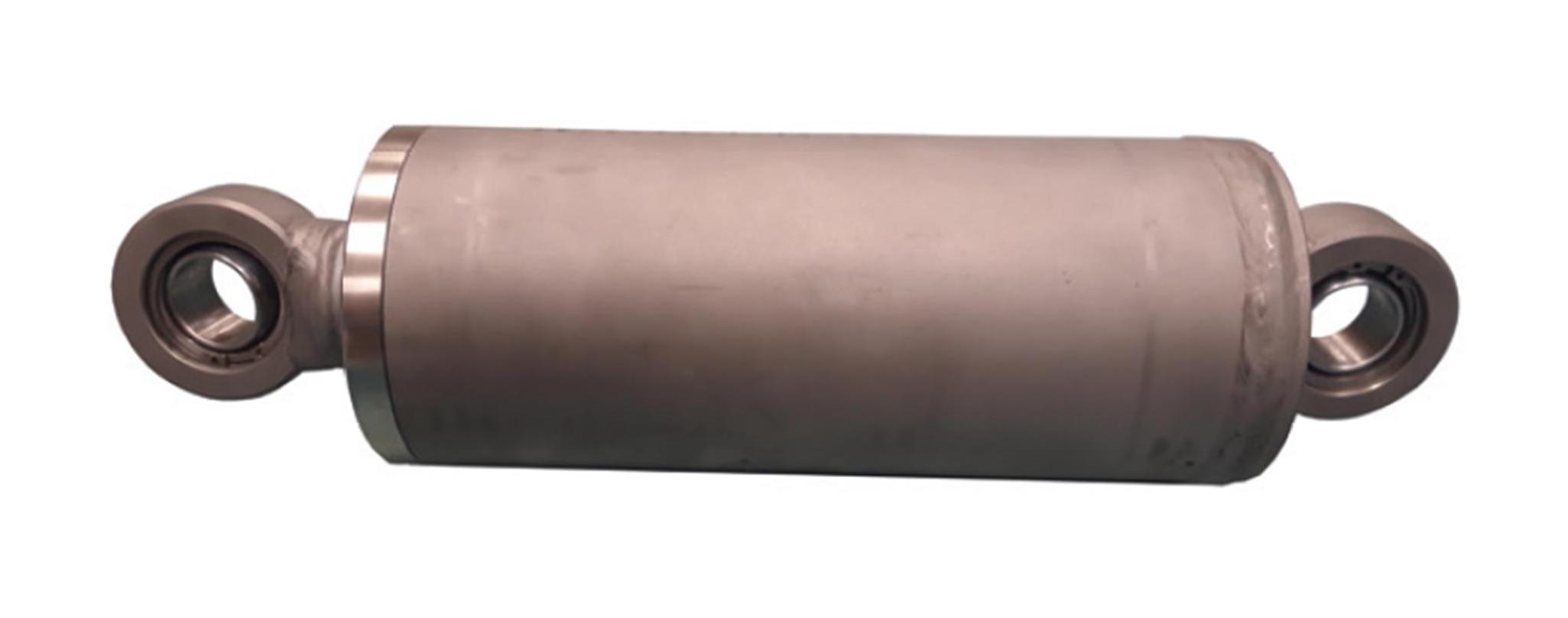

Choose between cylinders made entirely of stainless steel and cylinders with part stainless steel and part paint coating.
Important unique advantages of Hygienic Design units

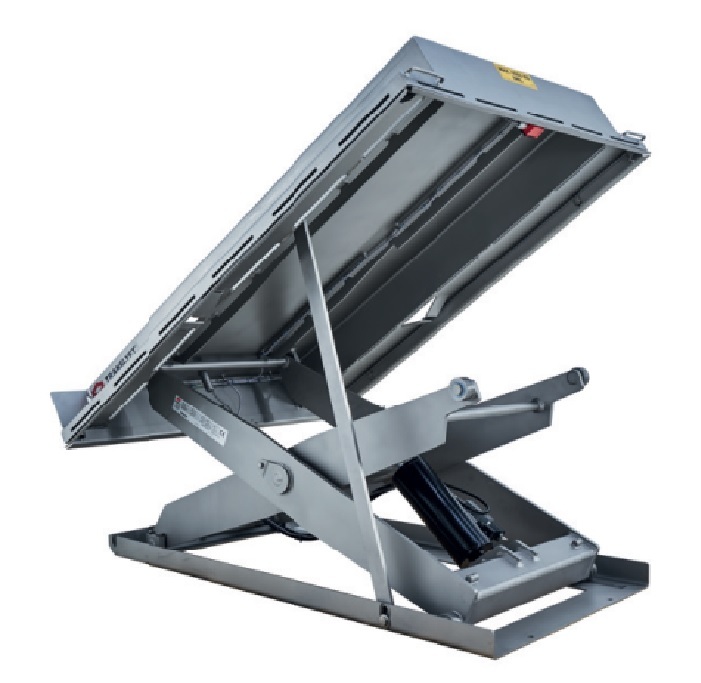

Tilt platform

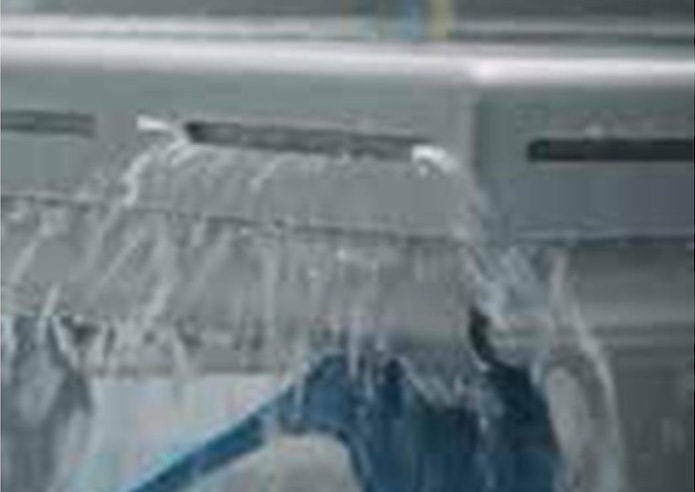

The cleaning mode facility makes you safe both time, water and detergent

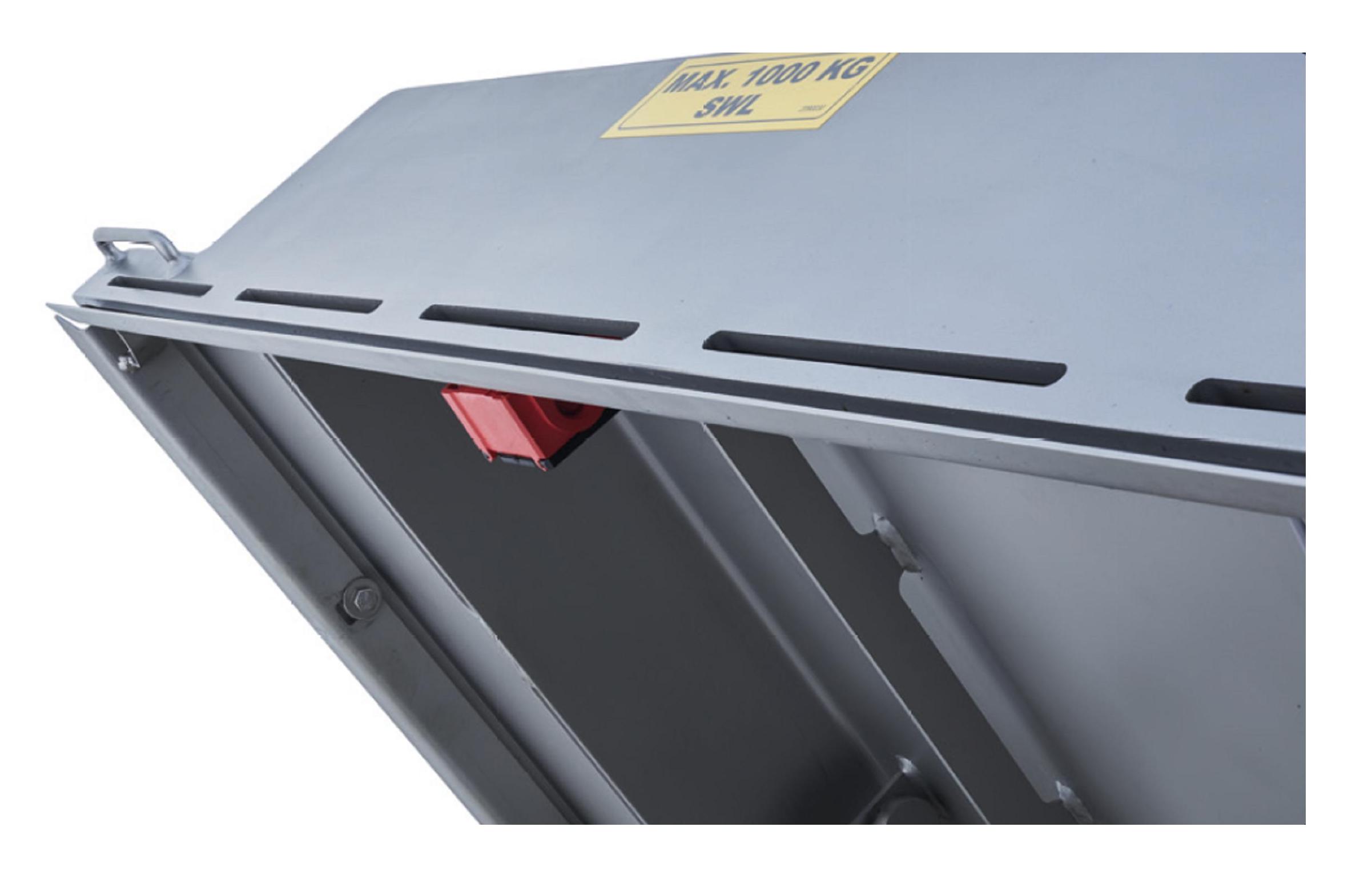

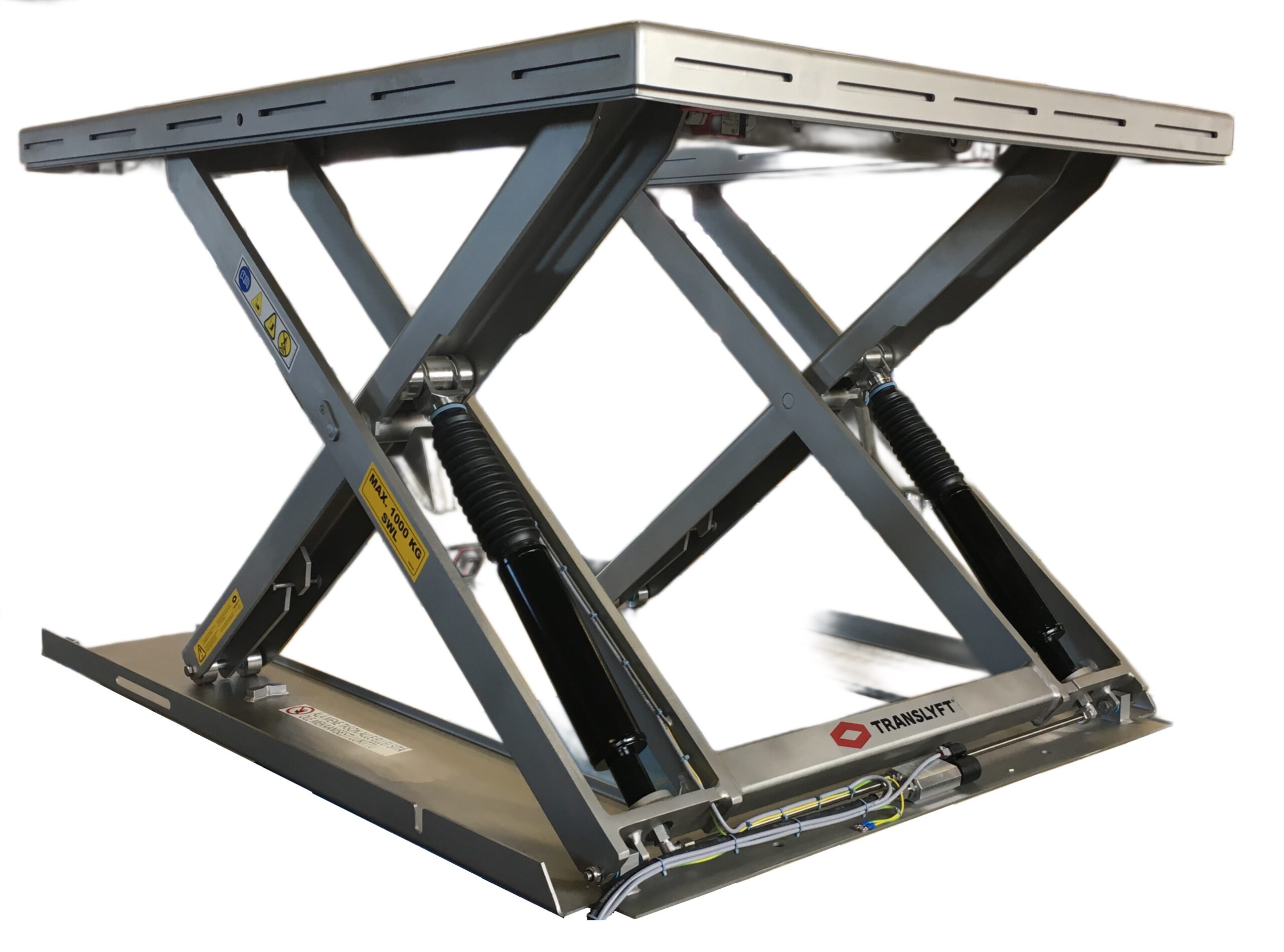

Platform slots
The platform can be equipped with slots to further ease the cleaning process.

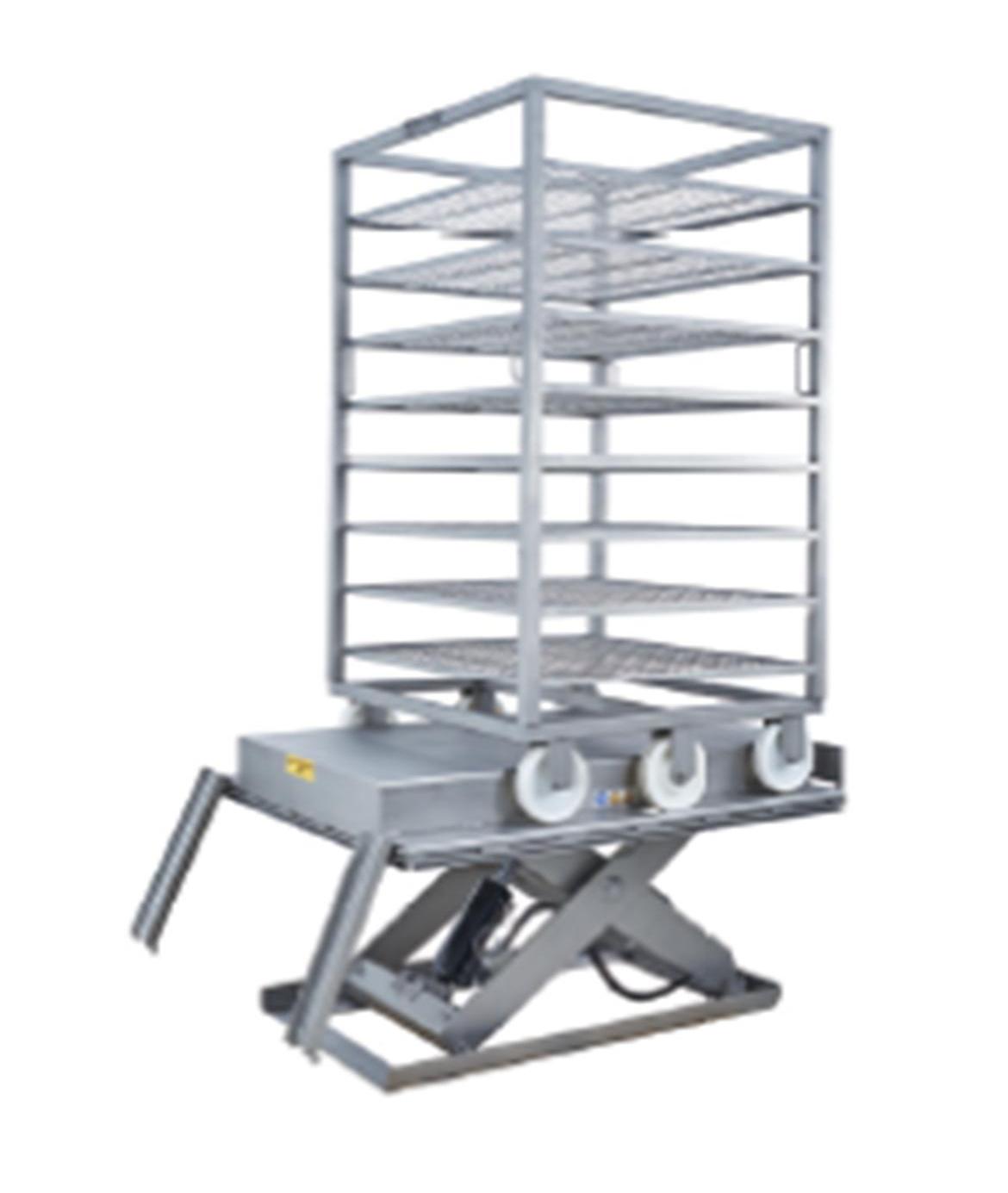

Custom table set up
The lifting table can be equipped to fit your needs. This one is made for smoke trolleys
Available in a wide range of models
Hygienic Design features are also available on superlow models
Variety of platform shape
Hygienic Design features are also available for E and U shape platforms

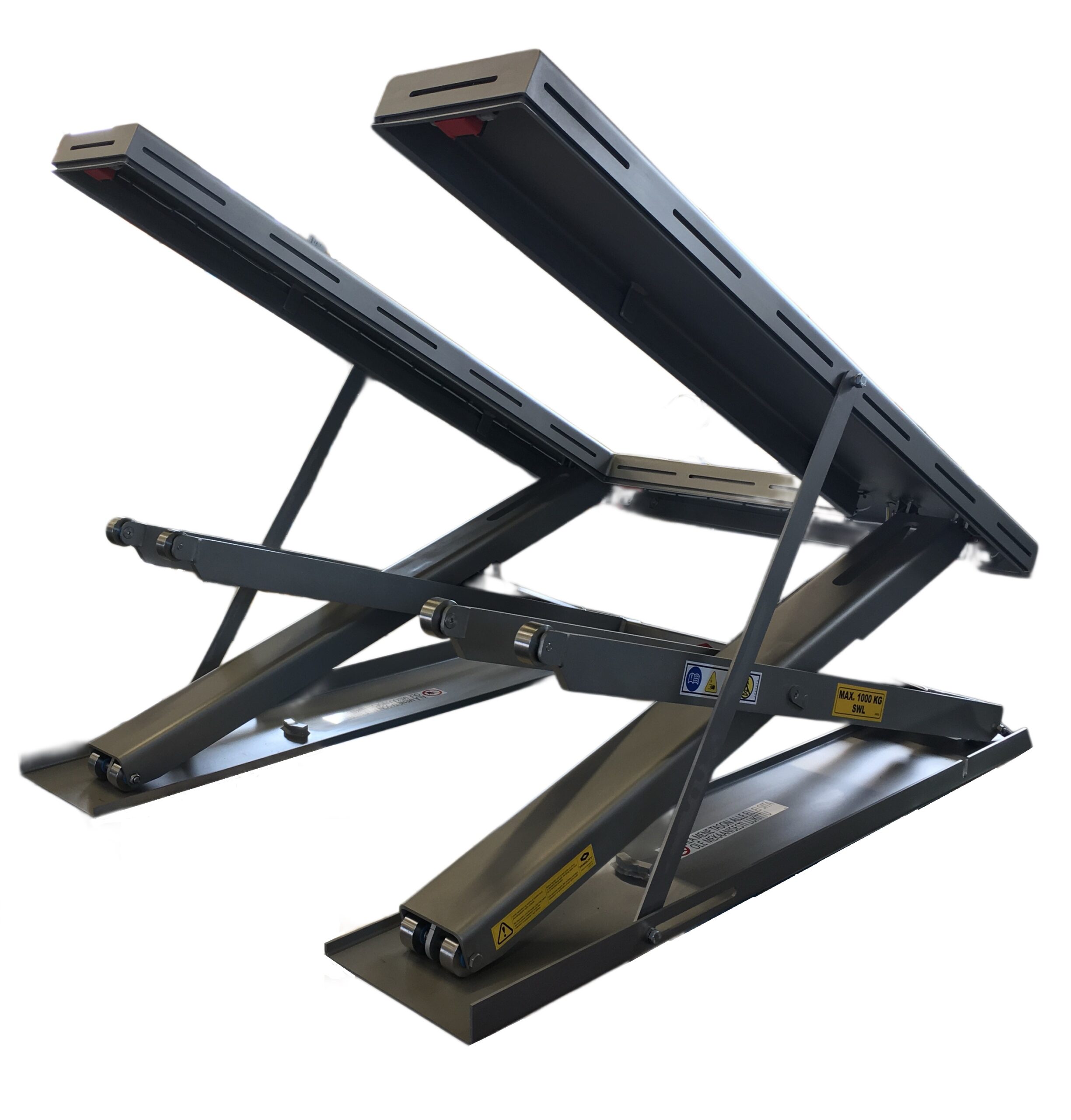

U shape platform
Also available for packaging areas in humid environments
