Leonardo HD

Indoor / Outdoor up to 5000mm working height

The Leonardo range includes three models designed to deliver performance, reliability, and safety in every application, from industrial construction sites to manufacturing plants and building maintenance.

Leonardo HD represents an innovation for working at low heights. It is designed to make the operator self-sufficient and enables him to produce a greater amount of work, eliminating the need to use ladders and scaffolding.

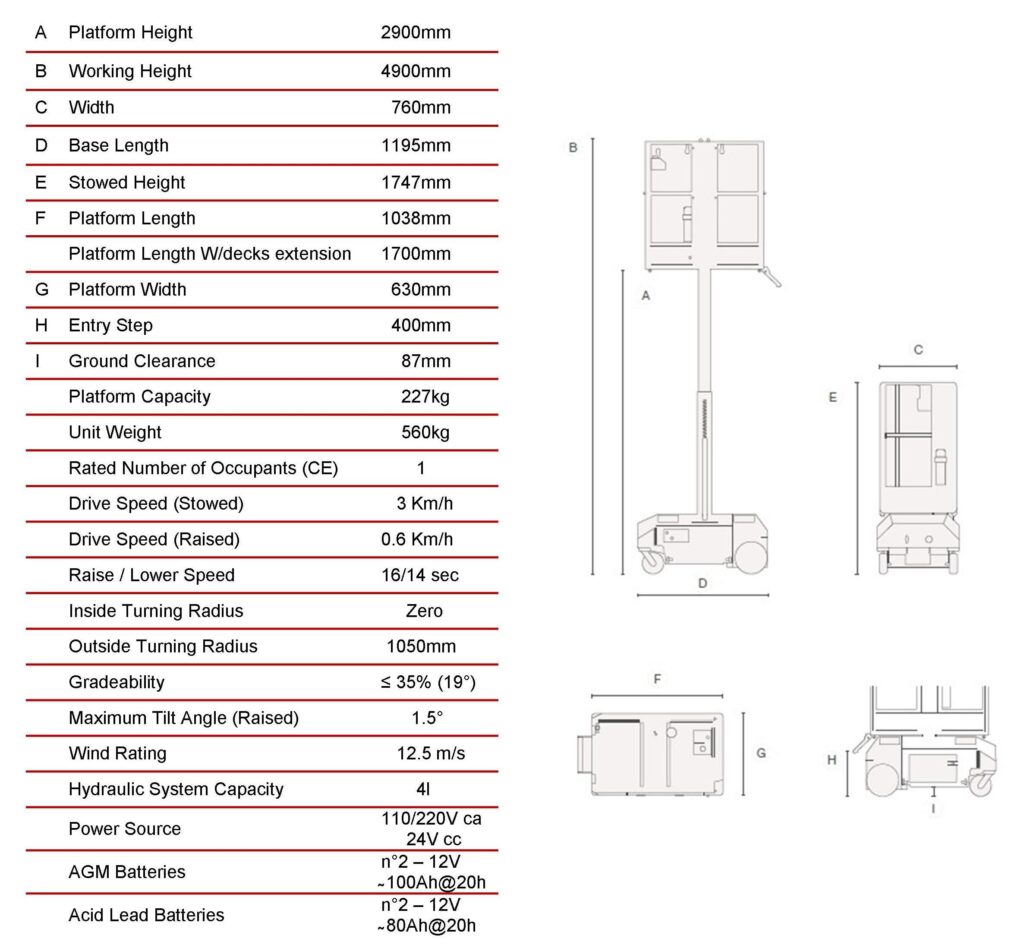

Technical Specification Leonardo HD
Why is Leonardo so amazing?

01

Design

Of simple design and user-friendly, Leonardo HD is conceived to last a long time while ensuring minimum maintenance costs and a superior residual value. The ultra-optimal dimensions of the device ensure universal use in virtually all commercial and industrial areas.

02

Reliability

The product’s reliability is due to its maintenance-free mast, which is guaranteed for 10 years, and to a sturdy, shock-proof steel chassis with a design that prevents the deposit of residual materials and debris, which can often damage the unit.

03

Safety

With its extremely durable construction and ergonomic design, the Leonardo range eliminates the risk of falls associated with manual work such as ladders and scaffolding, which are among the leading causes of workplace injuries.

Durability, comfort and maximum profitability

The Leonardo range is designed to deliver the highest return on investment by halving operating costs and doubling productivity. Thanks to its reliability and low maintenance requirements, it provides a lower total cost of ownership and greater profitability in the long term.

04

On any surface

It can climb slopes of up to 35% and move easily over uneven, rough or partly damaged surfaces. Non-marking tires guarantee maximum protection also on freshly finished and delicate surfaces. Leonardo is versatile on any surface.

05

100% Efficiency

The basket allows the operator to easily load materials, reducing downtime while improving efficiency and comfort. Leonardo allows operators to work faster and less tedious, without wasting energy on operating the device itself.

06

Manoeuvrability

A zero-turn radius and compact dimensions provide easy access to tight and crowded spaces. The standard wheel locking system simplifies loading and unloading, making the Leonardo suitable for a wide range of applications.

Easy transport

Every platform in the Leonardo range can be easily loaded into vans using ramps and is equipped with forklift pockets for convenient handling. Their compact design allows for easy access through elevators, standard doorways and narrow corridors.

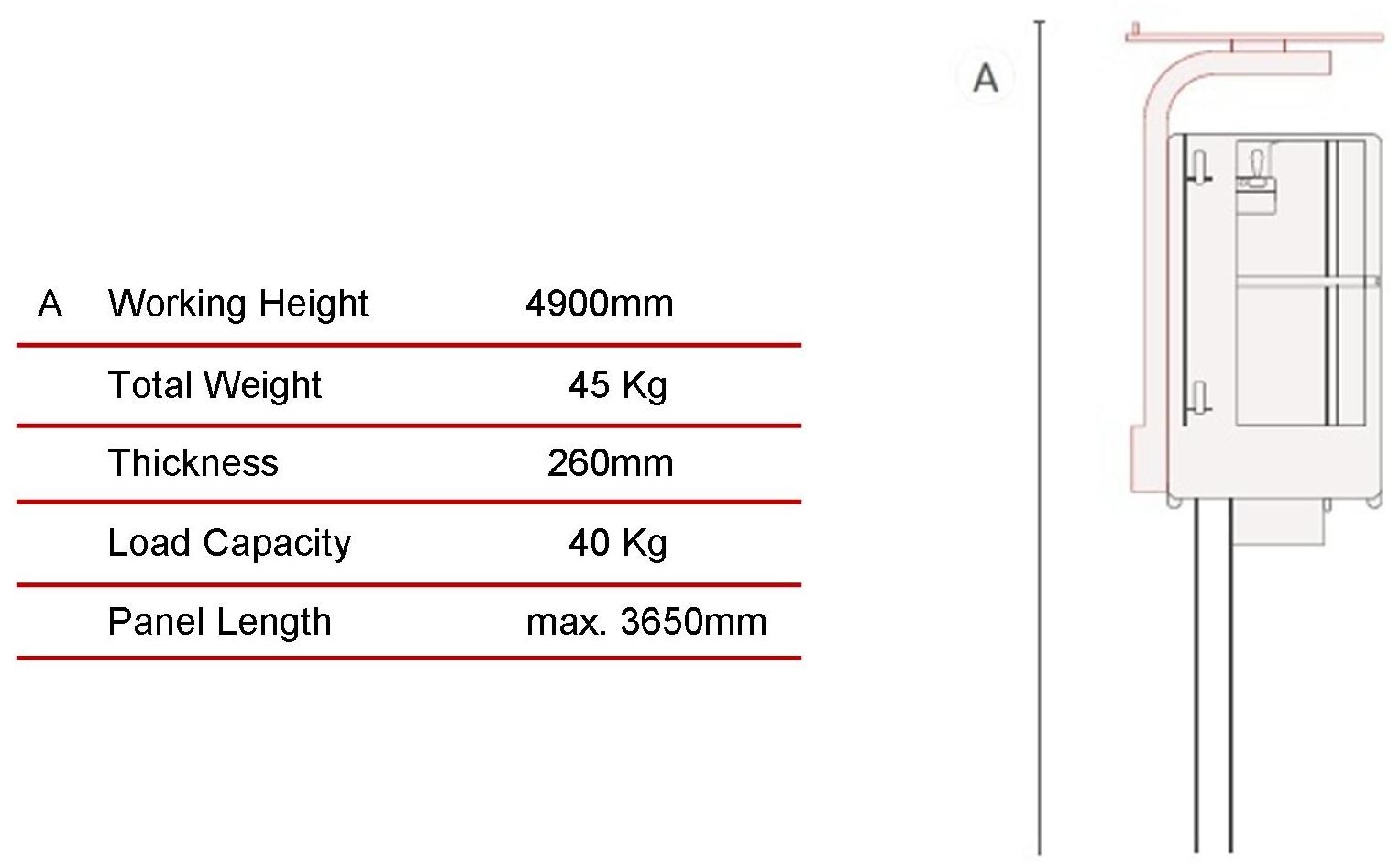

Leonardo HD / Configuration 01 / SOLO GYPS

Faster and safer plasterboard installation

Designed for suspended ceilings and acoustic solutions, Solo-Gyps lifts panels weighing up to 40 kg onto an adjustable frame, and thanks to its roller system, allows the operator to perform convenient, self-installation in half the time.

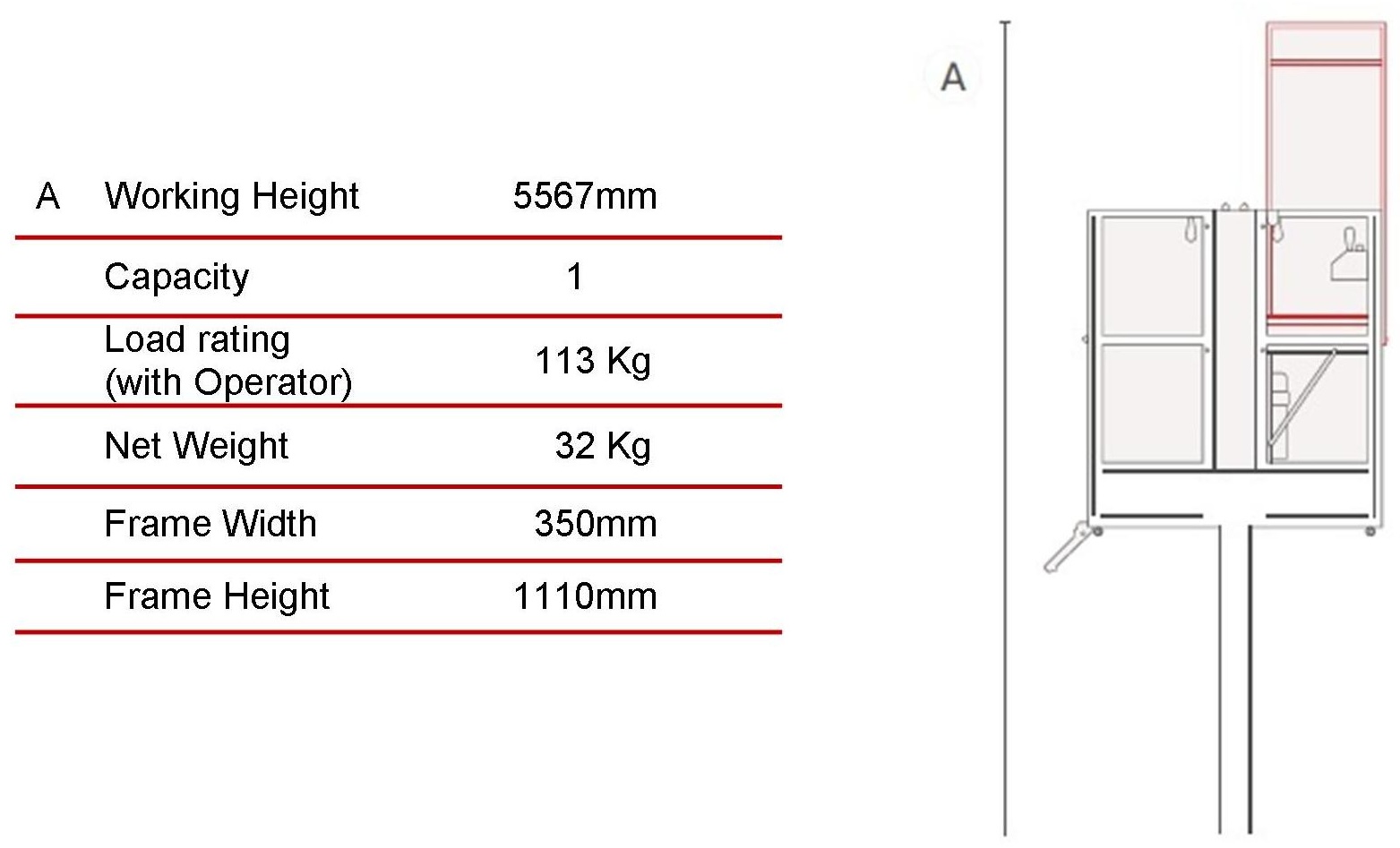

Leonardo HD / Configuration 02 / SMALLL-E

Quick inspections in technical rooms

Designed to provide quick access to rooms with limited ceiling space, the Small-E allows the operator to comfortably and safely perform inspections and maintenance work. Easy to assemble with quick-release fasteners, the Small-E features a dedicated, ergonomic top control box and can be folded away completely when not in use, reducing clutter in the basket.

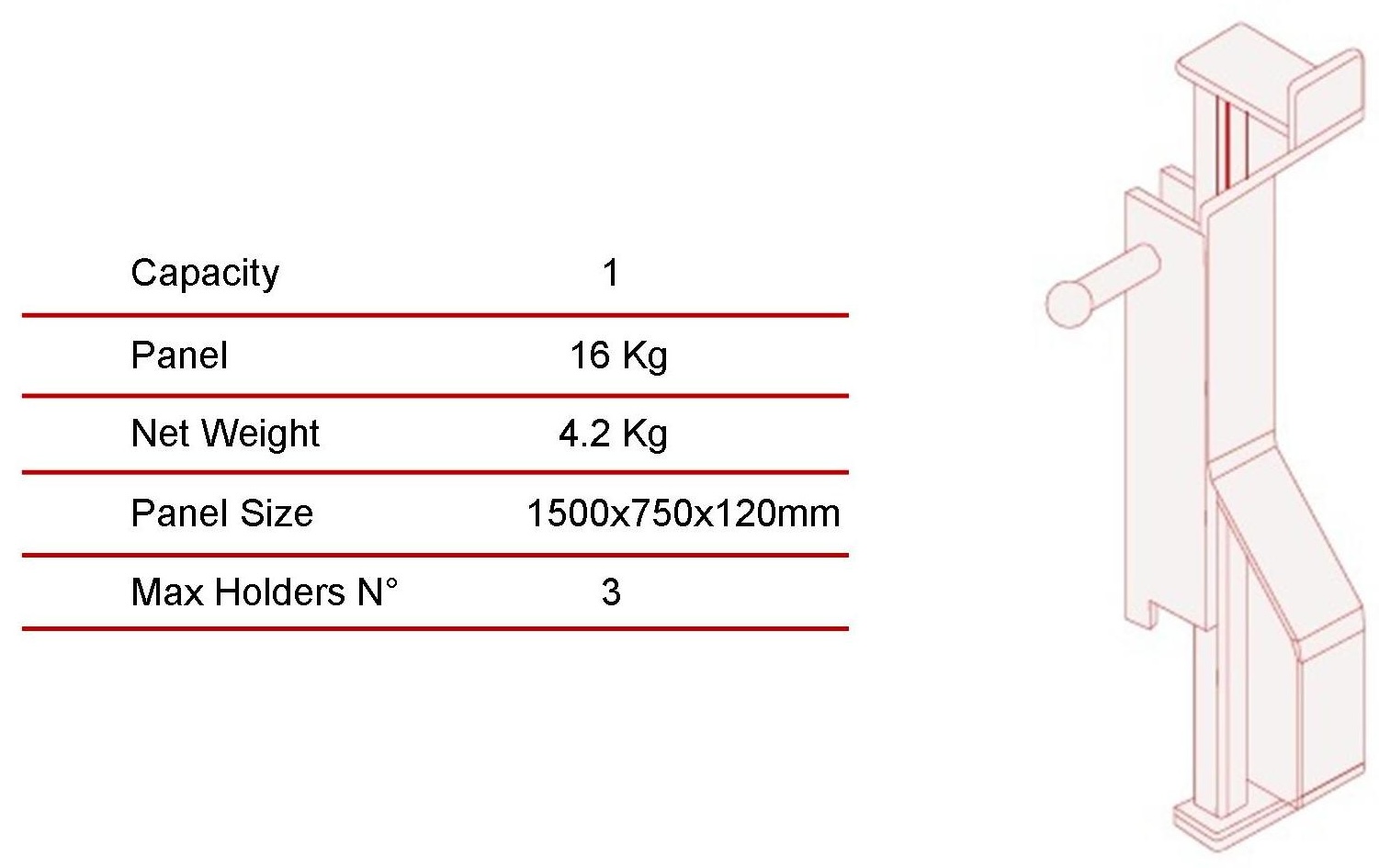

Leonardo HD / Configuration 03 / PERRI SKYDECK

Support for ceiling formwork operations

Leonardo HD, combined with PERI Skydeck, offers an efficient system for reinforcing and dismantling slab formwork panels. Lightweight and easy to assemble, it allows a single operator to precisely lift and position up to three 16 kg boards without the use of large equipment. Perfect for use in prefabricated construction, it reduces assembly time and guarantees maximum stability and safety, which translates into greater efficiency on the construction site.

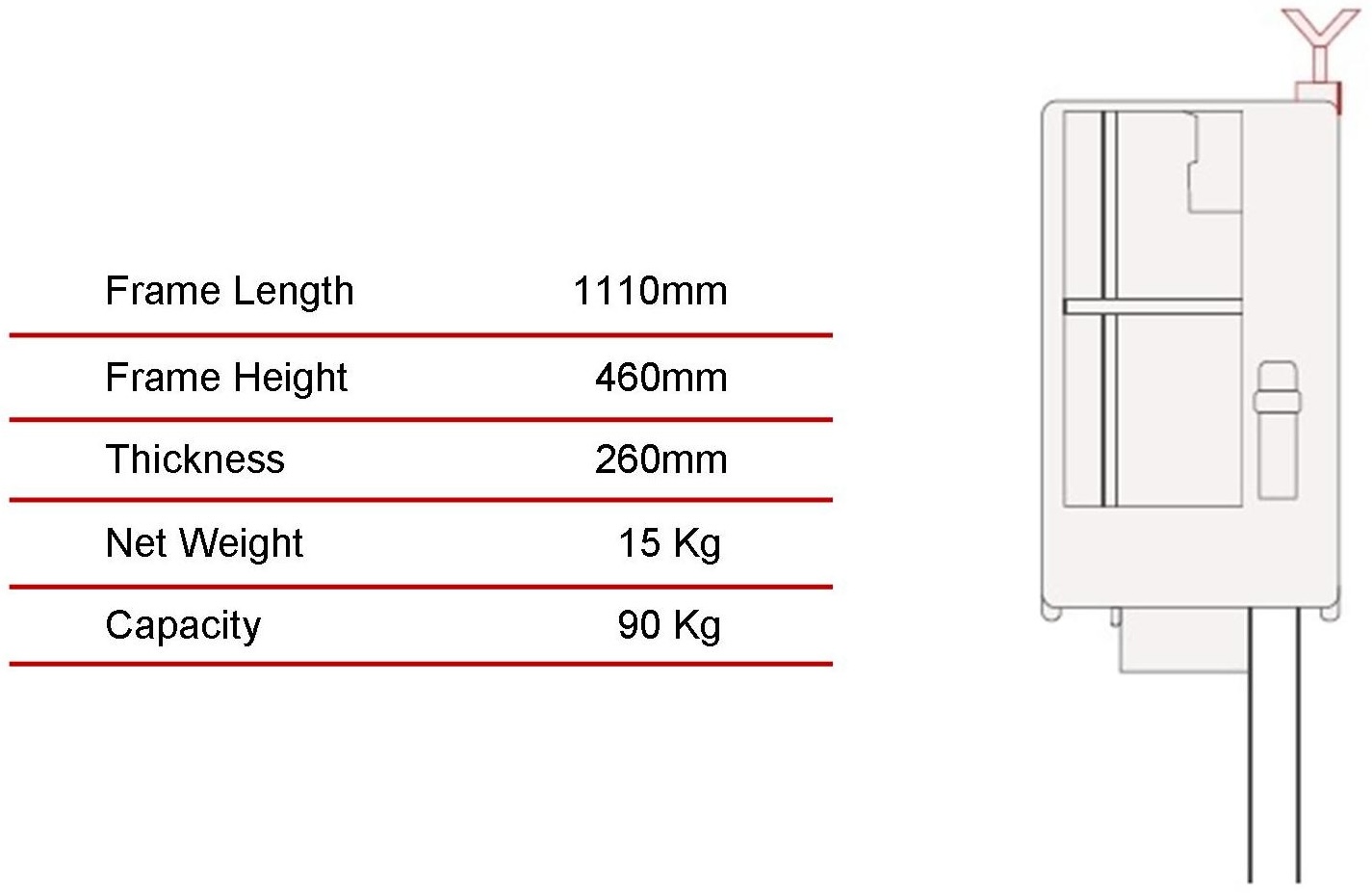

Leonardo HD / Configuration 04 / PIPES RACK

Simplified pipe transport

The pipe-laying tool optimises the handling of pipes and elongated materials weighing up to 90 kg directly on the Leonardo HD platform, ensuring tidiness in the basket. Designed for the construction, water, sewage and plant engineering industries, it provides faster and safer transportation than traditional methods, improving site logistics and levels of efficiency and comfort.

Leonardo HD / Accessories

Tailor the Leonardo to your every need

The Leonardo range can be configured with a set of accessories designed to increase practicality and operational versatility. From material handling solutions to tools that optimise ergonomics and operator protection, each option is designed to meet the specific needs of different industries.

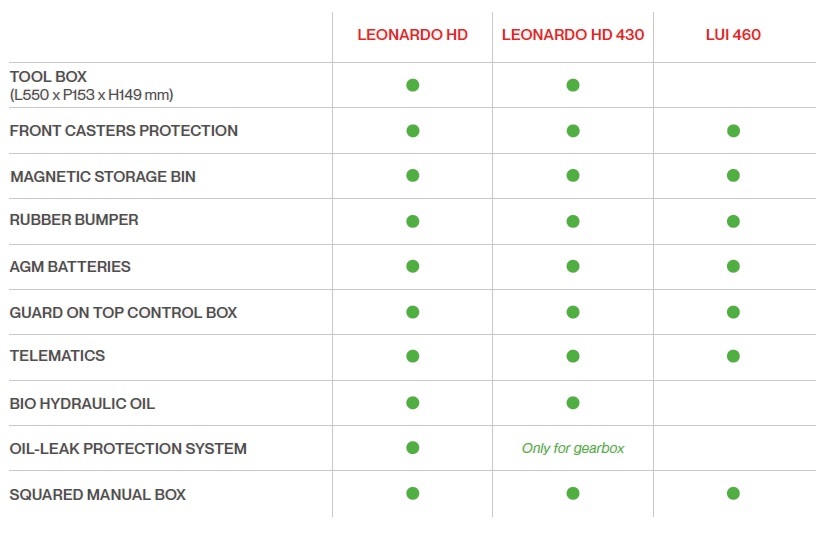

AVAILABLE ACCESSORIES FOR THE UNIT
